Safety box

Safety box

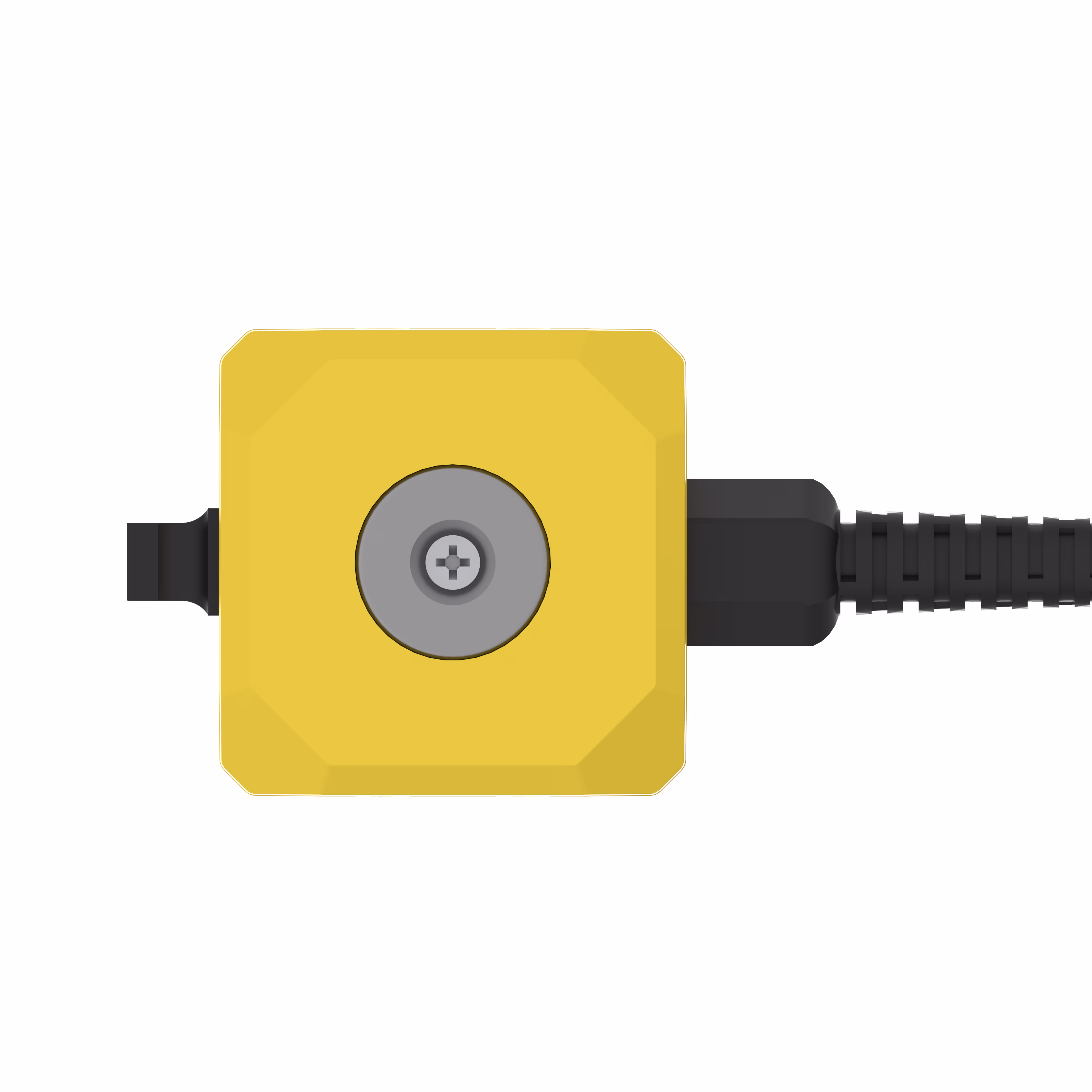

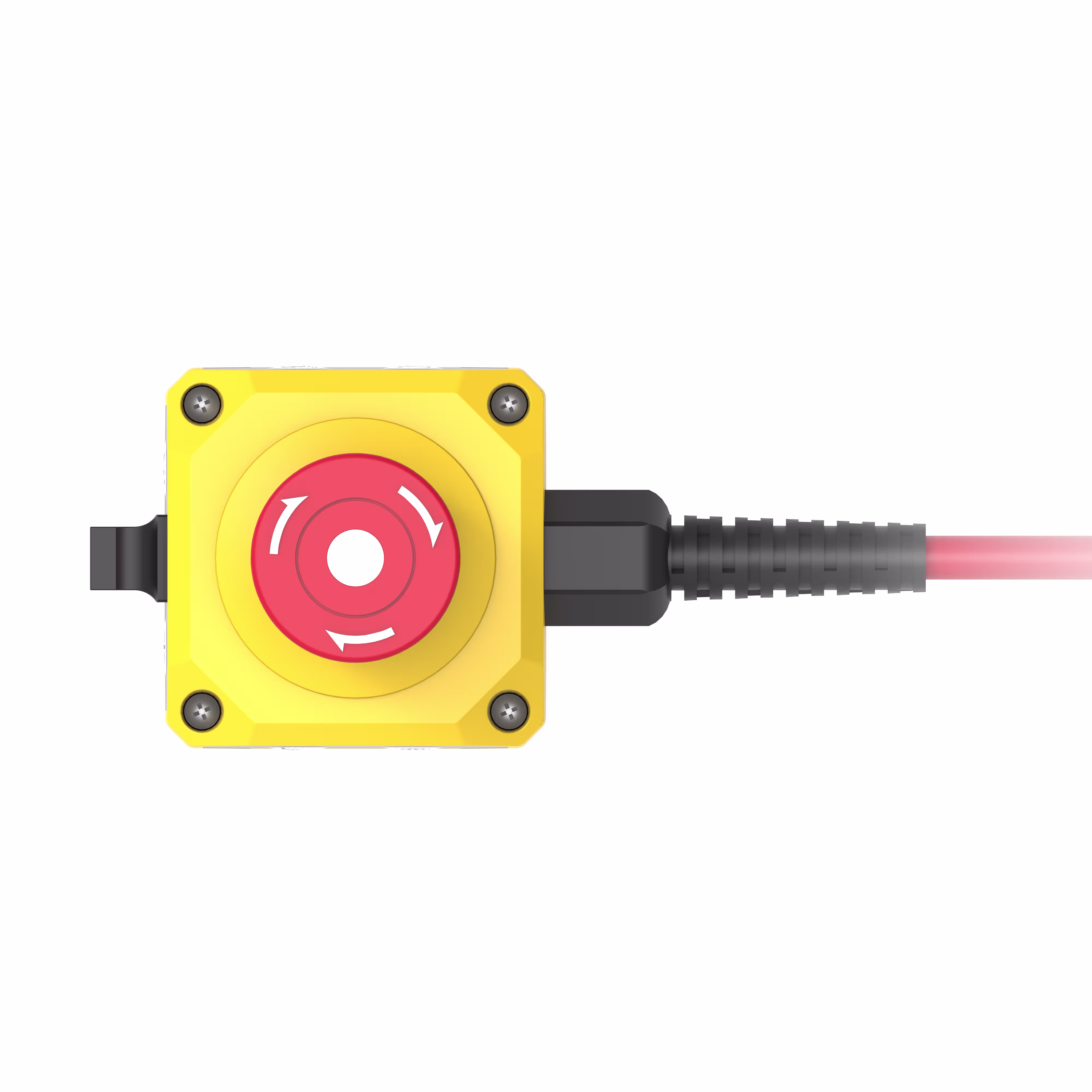

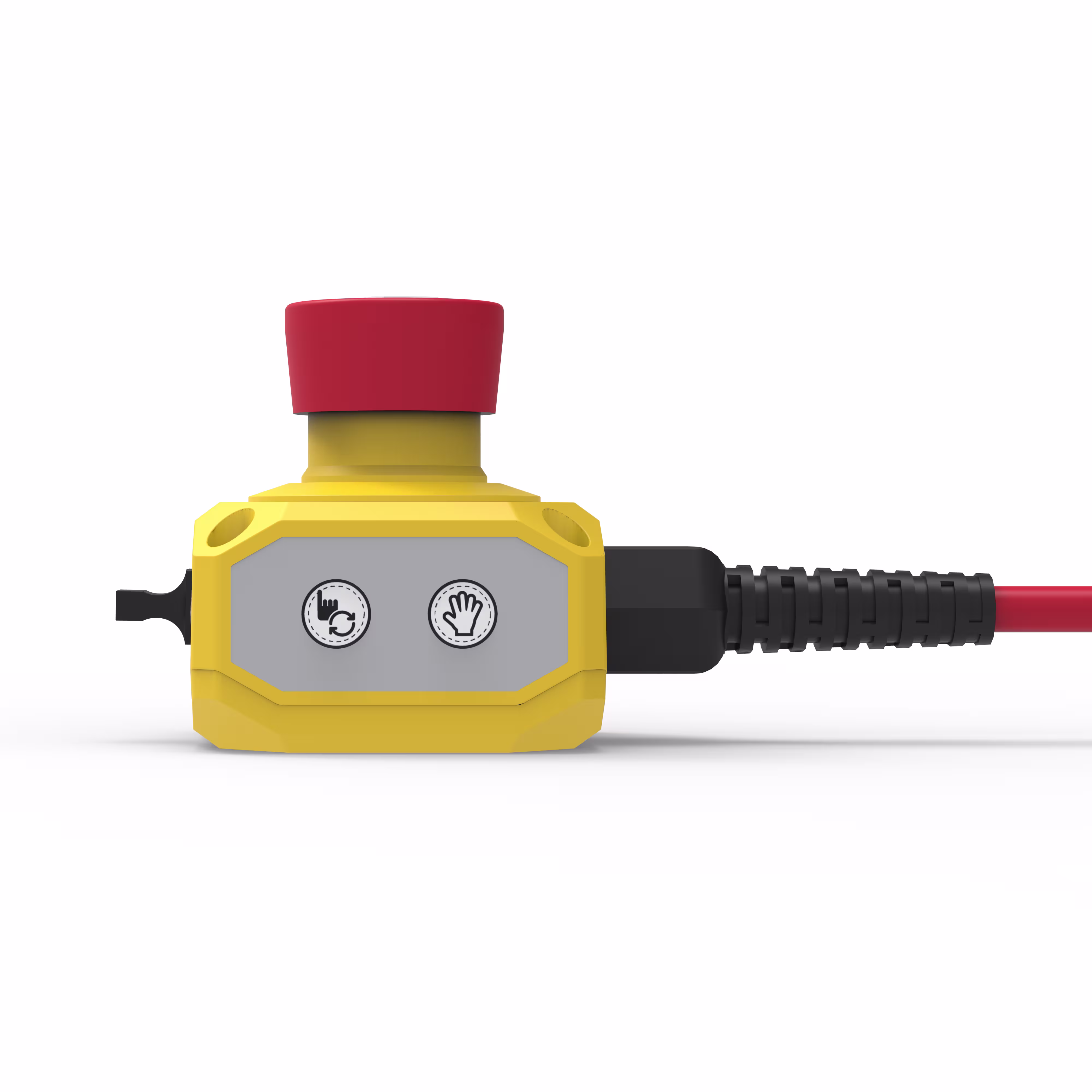

The Safety Box is a human–cobot interaction tool designed for intuitive and safe control of collaborative robot operations. It enables basic interaction functions such as Manual/Auto mode selection, Drag, Point Record, Safety Button matching, Start/Stop, and Shutdown. The device communicates via TCP/IP with a 100M network transfer rate and supports standard Power over Ethernet (PoE). It can be easily connected to computers, tablets, and other devices through the RJ45 interface, allowing direct access to the Web App teaching interface. With IP54 protection, a durable ABS housing, and compact dimensions of 136 mm × 60 mm × 66 mm, the Safety Box is built for industrial environments. It weighs 490 g (including cable), features a 5 m cable length, and includes 20+ control keys for efficient operation.
